ROLL Type System

ROLL Type System

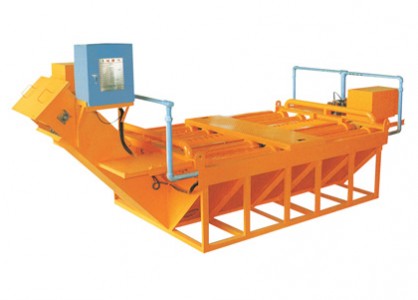

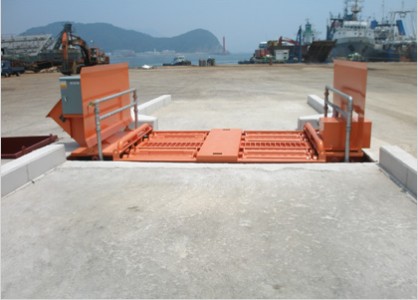

Roll Type Water Portable Automatic Tire Washer
DTW-110(8R) - General Field
※ The above products and specifications can be changed to improve product quality.
MODEL DTW-110 (General Field)
Equipment Specifications 2,200(W) * 5,160(L) * 1,000(H)
Equipment Weight 4,700kg
Appicable Vehicle 25Ton, Large Vehicle
Washing Time 45sec
Processing Capacity Max. 640 Vehicles/Day(8 hours/day)
Electric Power Types 220V / 380V 3-phase, 60Hz
Power Consumption 15.5Kw
Operation Method Automatic tire washing system by proximity S/W detection
Water Pressure 3~4kg/㎠ Sludge Automatic Discharge

| Areas difficult to supply 3-phase power |

※ New product of energy-saving ROLL type, patented Inquiry on the Portable Automatic Tire Washer (Single phase 220V, combined with a self-generator)

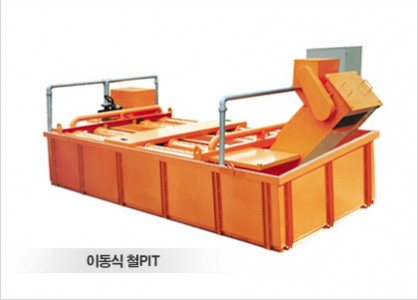

Name of major parts

1 Roller 8 Roller 15 Roller drive motor
(in motor protection cover)
2 Roller 9 Submersible pump 16 Conveyor Motor Protection Cover
3 Roller 10 filter 17 Conveyor drive motor
(in motor protection cover)
4 Roller 11 Piping water pipe 18 Control Panel
5 Roller 12 Sprinkling piping pipe on discharge side 19 Sludge discharge chain
6 Roller 13 Lower water piping line 20 Safety footrest
7 Roller 14 Roller guard motor protection cover 21 Built-in roller chain
Sequence of Tire Washing
  • 01

    A Vehicle Entry the System

    A Vehicle Entry the System. Whose wheels are to be washed enters slowly following the automatic guide line of the portable automatic tire washer and positions the front wheels between the front rollers safely.
  • 02

    Washing the front wheels and the front side of a vehicle simultaneously

    Once a vehicle is placed in neutral and the brake is released, the automatic detector operates and starts to wash the wheels, thoroughly washing the dirt in and out of the wheels and the bottom of the vehicle.
  • 03

    Washing the rear wheels and the back side of a vehicle simultaneously

    As the front wheels are being washed, once the vehicle is placed in neutral and the brake is released after placing the rear wheels between the front rollers slowly, the soil on the vehicle is thoroughly washed through the operation of the automatic detector.
  • 04

    Moving forward of a vehicle

    After everything is washed, a vehicle can move forward slowly out of the tire washing device.
  • 05

    Automatic discharging of sediment

    The portable automatic tire washer goes back to its standby status for washing tires in the shortest time since sediment is discharged, and water for washing the tires is fully refilled automatically to wash the next vehicle’s tires.
Advantages of ROLL type system
01. Strength design considering durability
ROLLER is made of high-strength PIPE, circular BAR welded to ROLLER as well as to prevent the slip of the tire during driving, given vibrations to rotate when a tire of ROLLER by the water pressure to be injected in the lower part even misty mud between wheels groove Designed to be fully wheeled.
02. Vehicle sensing device by proximity S/W
The proximity S/W between ROLL and ROLL detects vehicles and performs the wash, and a built-in timer can adjust the washing time according to site conditions and soil type.
The device has a built-in circuit breaker in the main power overload equipment.
03. Anti-reverse device
It adopts RATCHET to prevent the reverse rotation of the roll, thus making it easy to proceed when entering or exiting the vehicle. It also protects the reducer by preventing breakage of the roll and chain during rapid start.
04. Automatic discharging of precipated sludge by SCRAPER
The powerful CONVEYOR CHAIN ​​and SCRAPER developed by Dongseo will automatically remove precipated sludge from the soil and install a precipated sludge guide chute in the precipated sludge outlet, which is a perfect product to maintain a clean site at all times, unlike other products.
