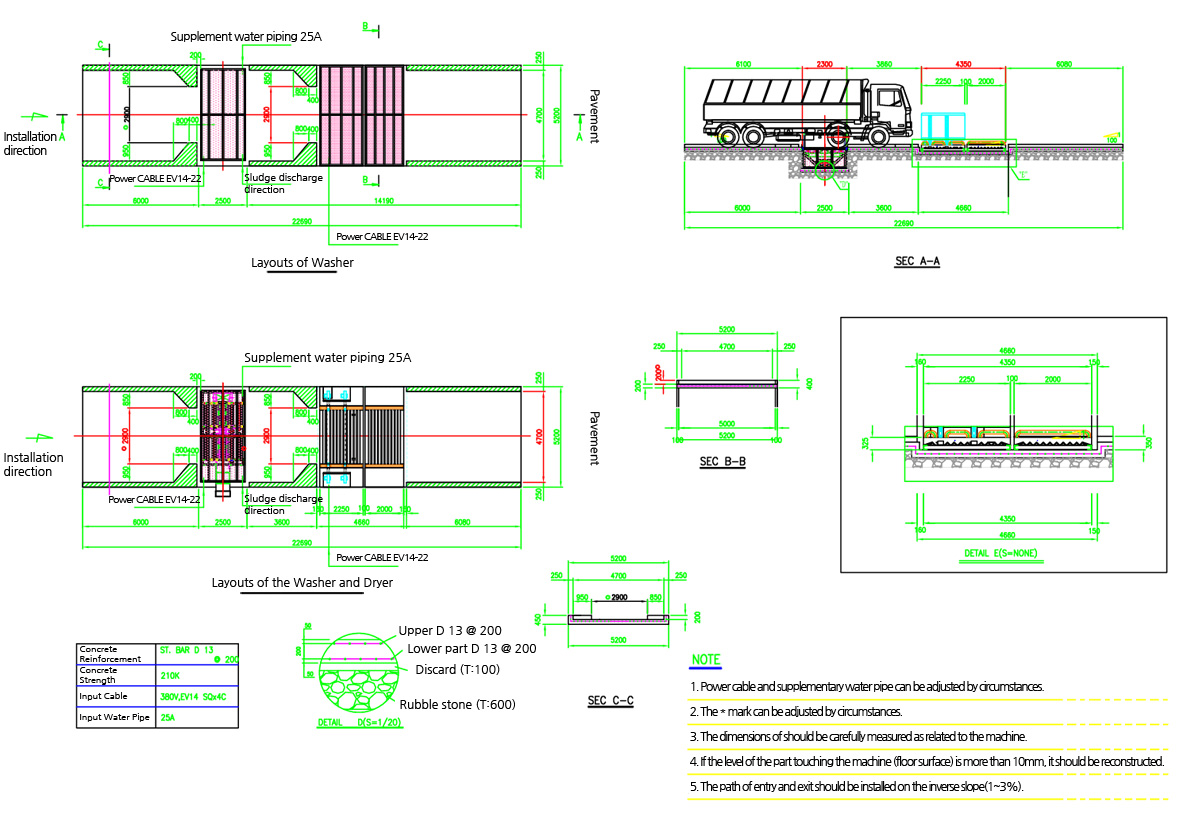

Basic Drawing of Dongseo Portable Automatic Tire Washer


This Basic Drawing is for the Right Direction. (Please Inquire Separately for the Left Direction.)

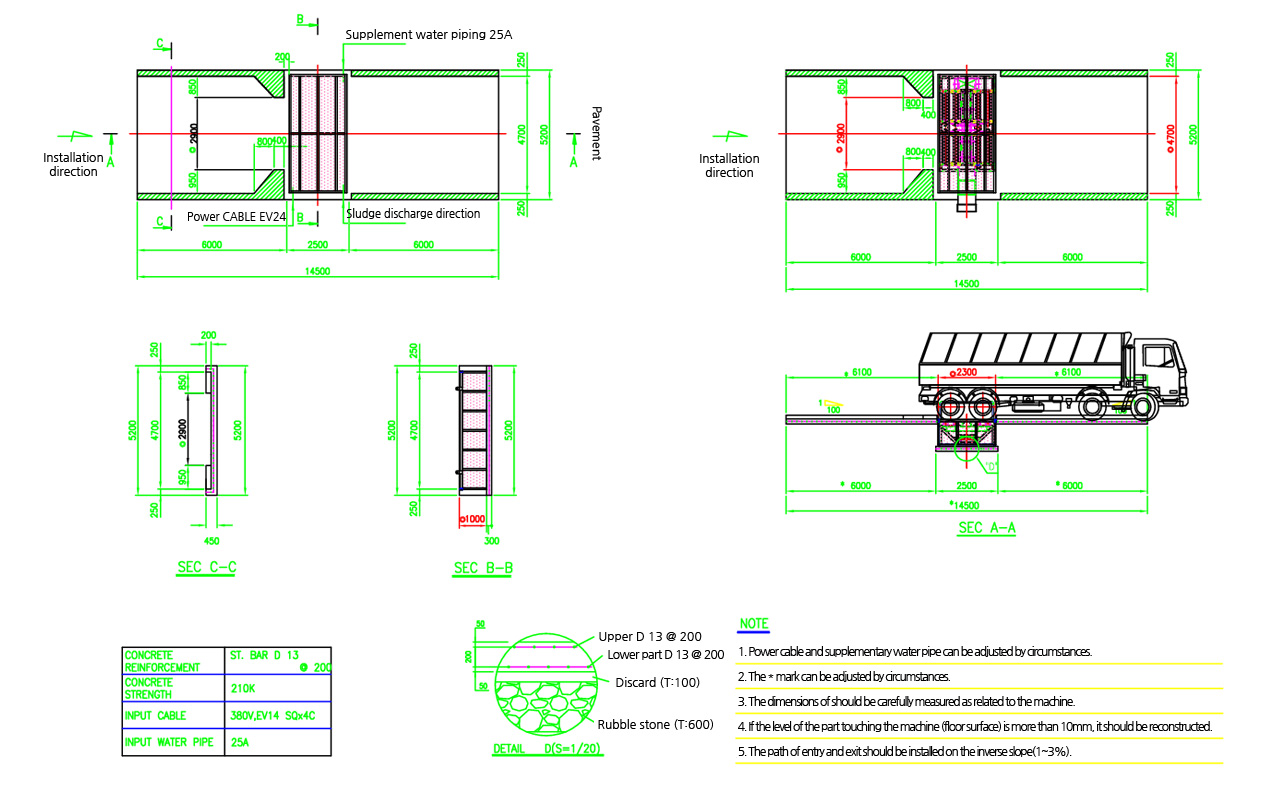

Basic Drawing of Washer (Using Removable Iron PIT and Sludge Box)

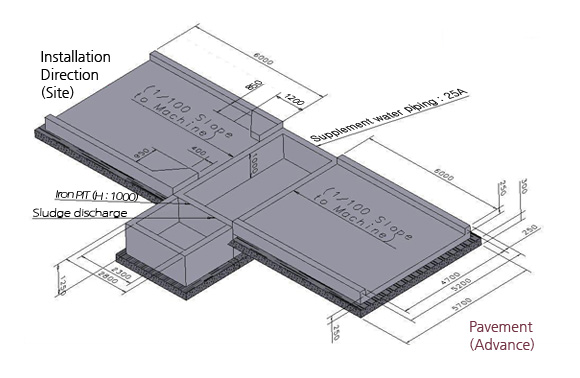

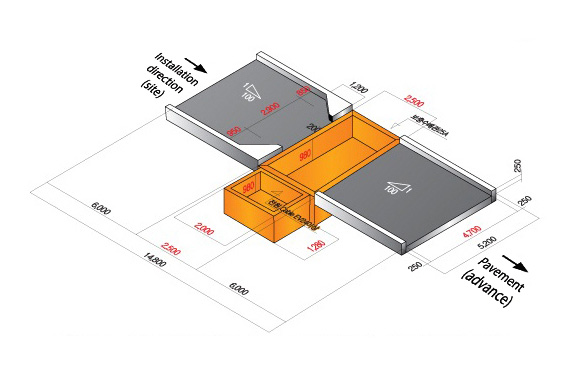

Tire Washing Facility PIT Three-Dimensional Drawing


This Basic Drawing is for the Right Direction. (Please Inquire Separately for the Left Direction.)
Iron PIT Type
Structure Type

Basic Drawing of the Wheel Dryer
