Removable Iron PIT Installation Image

Data

HOME

Data

ROLL Type System L6,500*W2,500*H1,000
GRATING Type System L6,500*W2,500*H1,000

Site Preparation	1. Portable Automatic Tire Washer Installation Equipment : Forklift 7Ton or More, Excavator 0.8 ton or More 2. Supplementary Water Work : 1/2B(13mm) PIP or HOSE 3. Electric Entry Construction : Power 20kw 3Ø 380V or 220V, CABLE 660CV 22㎥ × 4C 4. Basic Construction(Digging a Trench, Floor Concrete Casting, Concrete Work on Entrance and Exit) 5. Vinyl Work on the Iron PIT Contact Surface Before Concrete Casting

Site Preparation

1. Portable Automatic Tire Washer Installation Equipment : Forklift 7Ton or More, Excavator 0.8 ton or More
2. Supplementary Water Work : 1/2B(13mm) PIP or HOSE
3. Electric Entry Construction : Power 20kw 3Ø 380V or 220V, CABLE 660CV 22㎥ × 4C
4. Basic Construction(Digging a Trench, Floor Concrete Casting, Concrete Work on Entrance and Exit)
5. Vinyl Work on the Iron PIT Contact Surface Before Concrete Casting

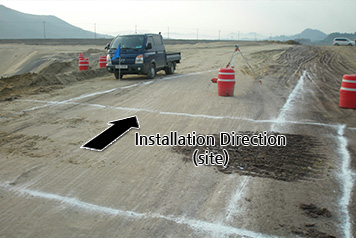

01 Digging a Trench
02 Digging a Trench

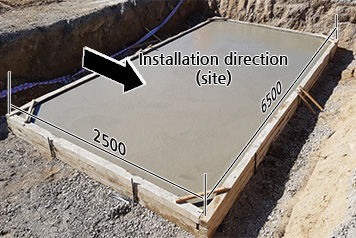

03 Floor Concrete Casting

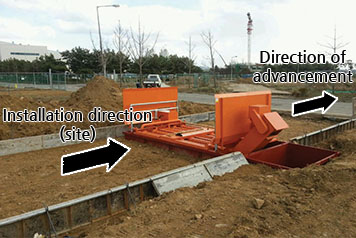

04 Installing the Portable Automatic Tire Washer

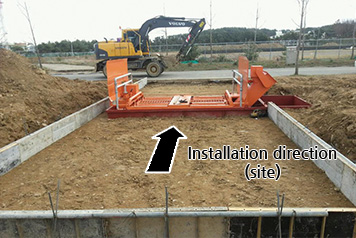

05 Backfilling Work
06 Formation of the Entry and Exit

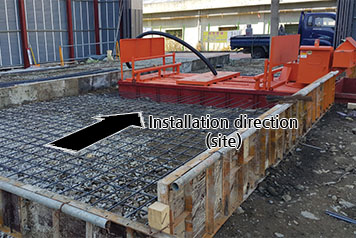

07 Rebar Placing on the Entry and Exit

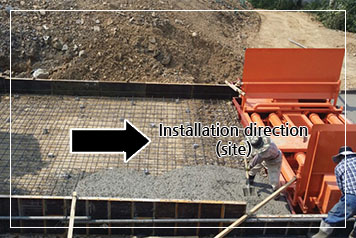

08 Concrete Casting on the Entry and Exit

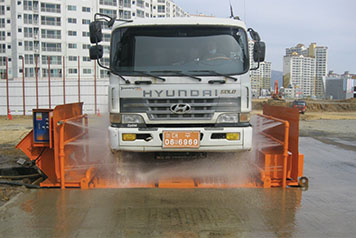

09 Complete Installation and Pilot Operation
