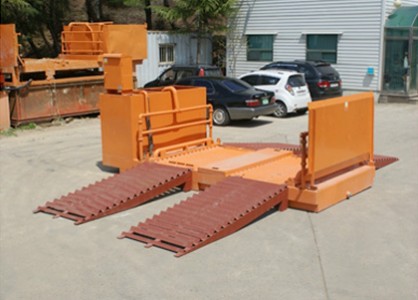

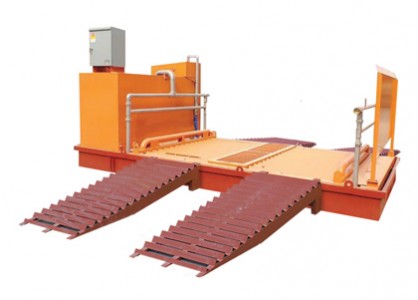

DTW-310C (ROAD RAMP method)
Drawing
※ The above products and specifications can be changed to improve product quality.
Specification
| MODEL | DTW-310C (ROAD RAMP method) | ||
|---|---|---|---|
| Equipment Specifications | 2,200(W) * 4,800(L) * 350(H) | ||
| Lamp Size | 2,540(W) * 1,100(L) (4EA) | ||
| Equipment Weight | 3,000kg | ||
| Appicable Vehicle | 25Ton, Large Vehicle | ||
| Processing Capacity | Automatic tire washing system by proximity S/W detection | ||
| Electric Power Types | Max. 720~1,400 Vehicles/Day (8 hours/day) | ||
| Operation Method | 220V / 380V 3-phase, 220V single phase, 60Hz | ||
| Power Consumption | 11.75Kw, Single Phase 3Kw | ||
| Washing Time | 20~40sec | Water storage capacity | 3~4kg/㎠ |
Application
1. A site difficult to reclaim, A frequently mobile site
2. Affordable installation cost
2. Affordable installation cost
